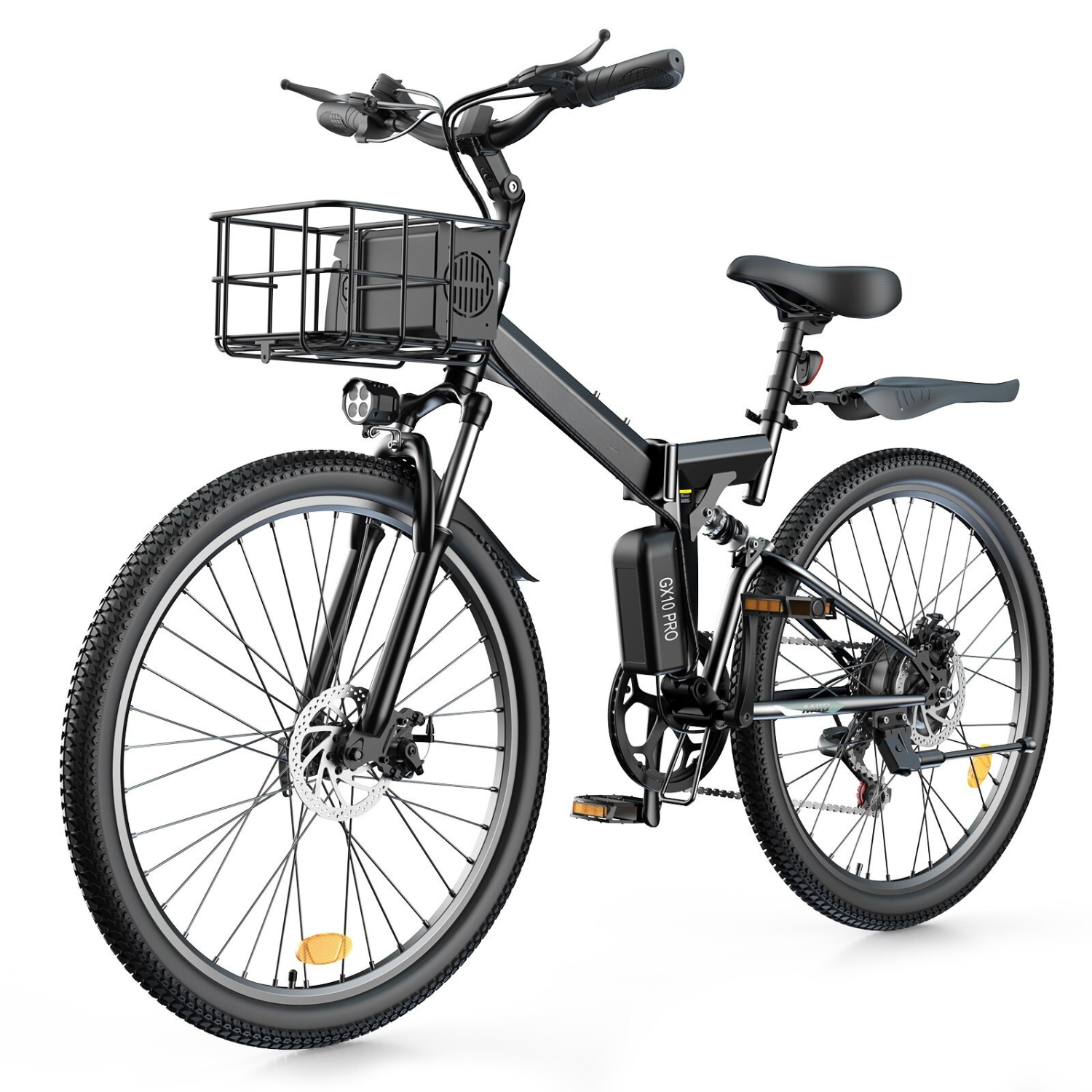

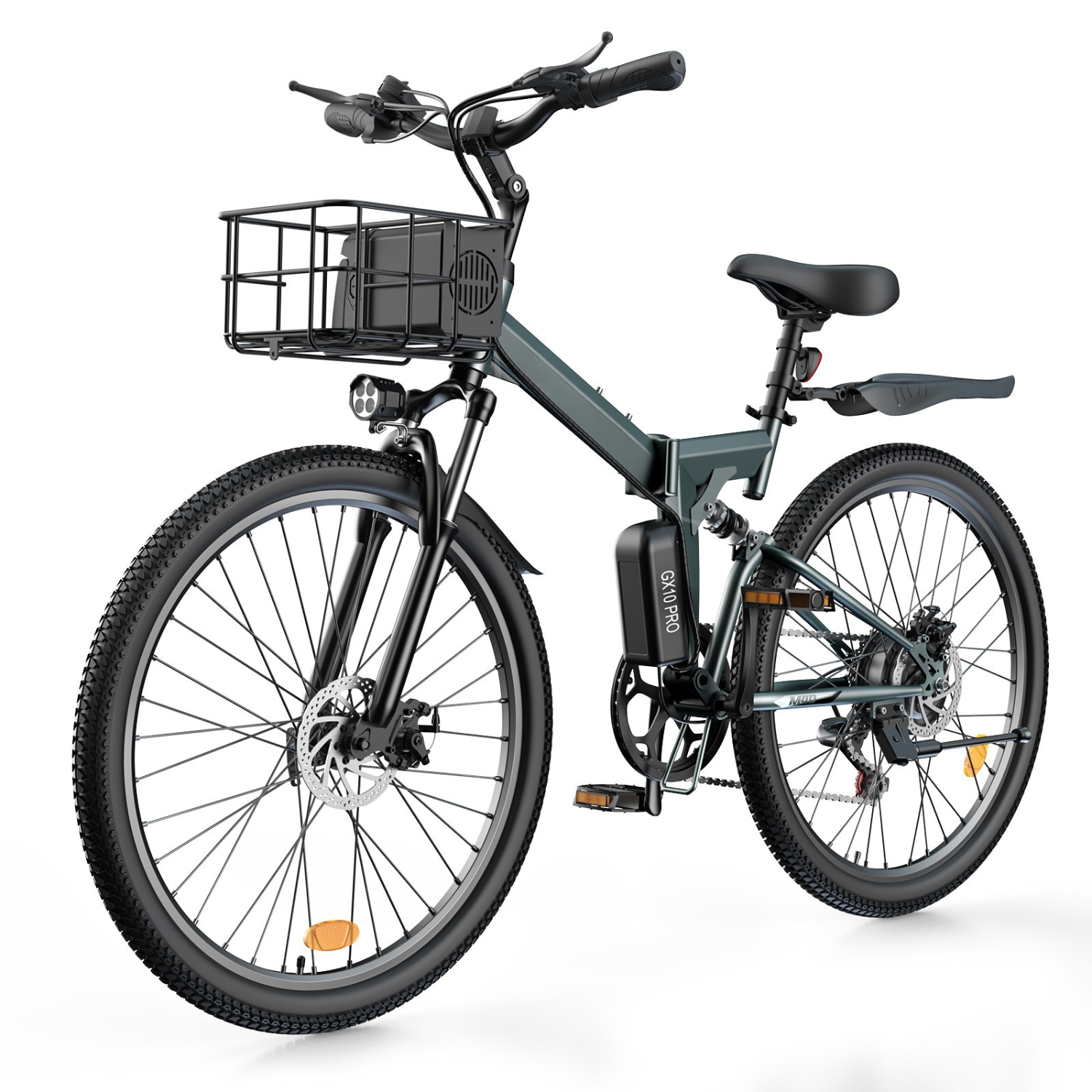

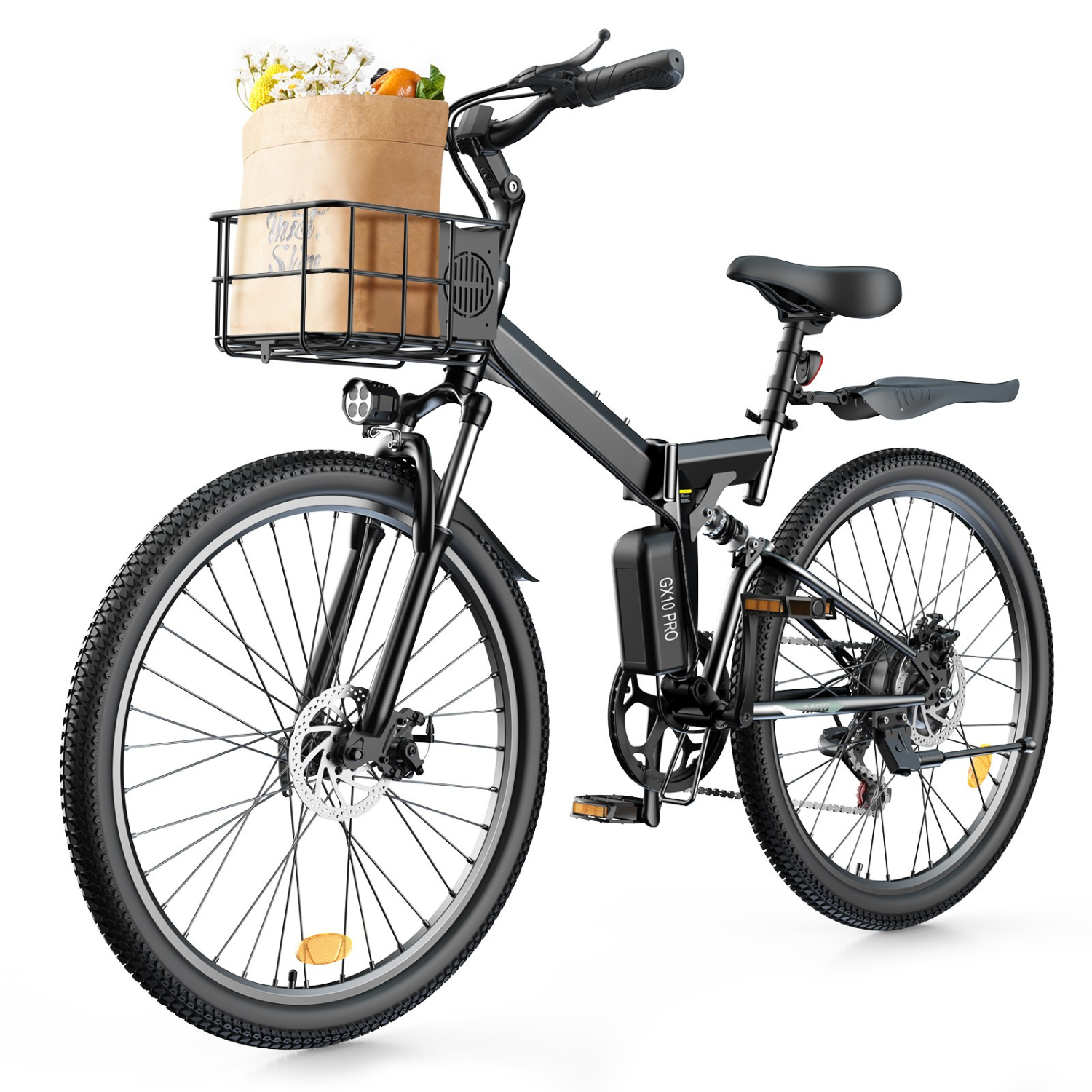

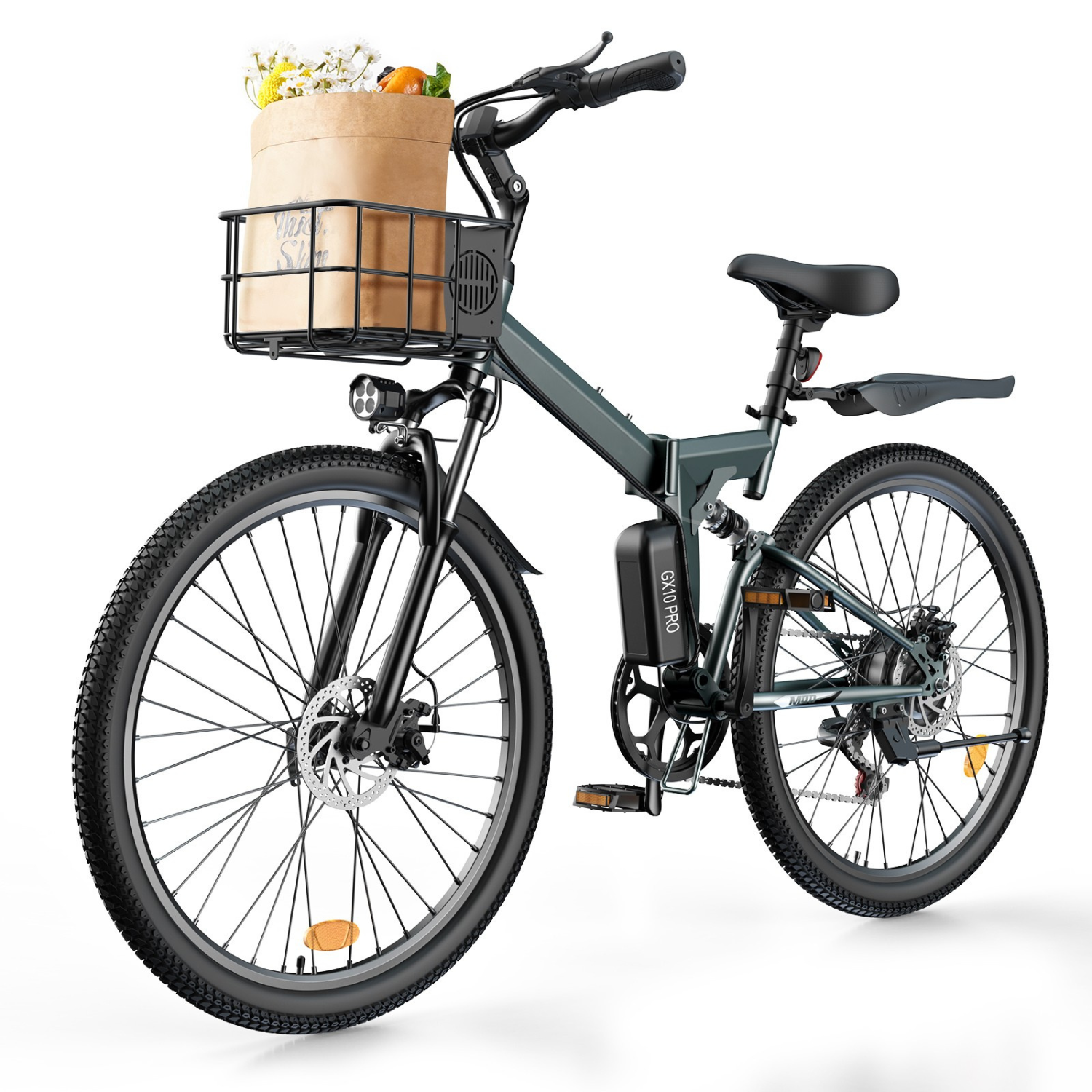

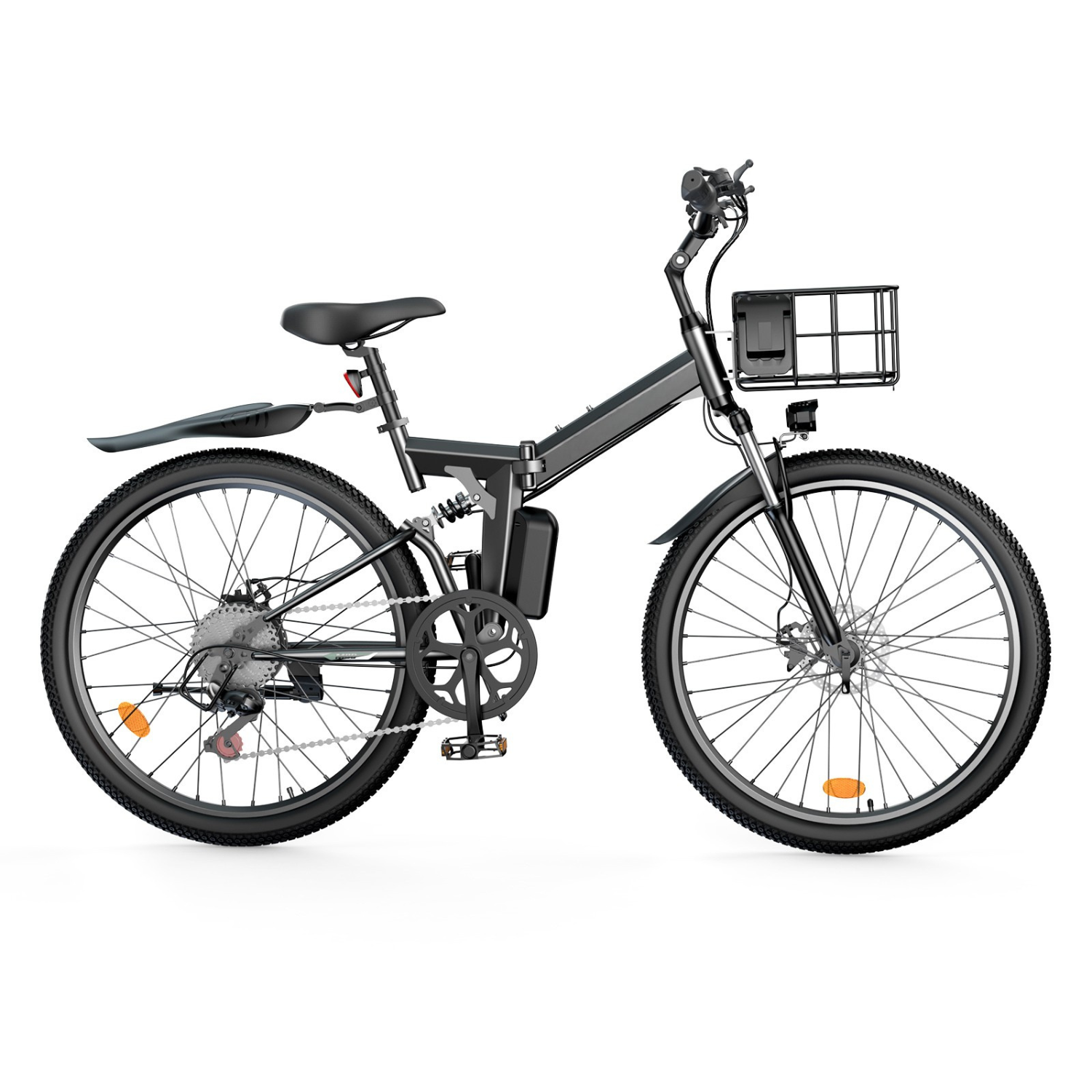

M40 Folding Electric Bike with Basket
32 KM/H
88 KM
26*1.95"
500W
27.5 KG
150 KG
Protect your purchase to enjoy it worry-free for years to come.
Your warranty plan provides,
Sudden and unforeseen accidental damage to the product
Comprehensive coverage for mechanical and electrical breakdowns, including motor, cabling, controller, and accessories
Safeguarding against inevitable wear & tear affecting unit functionality
Replacement or reimbursement, if we can't repair it
Our warranty policy covers all the products in your order for up to 12 months after sales (excluding accessories), The 30-day return and refund policy allows you to buy with peace of mind.
We provide professional after-sales support. Feel free to contact iScooter technical support team at support@iscooterglobal.com, or call +1 (855) 916-2366.
If the scooter you purchased is equipped with pneumatic tires, please inflate them before riding.

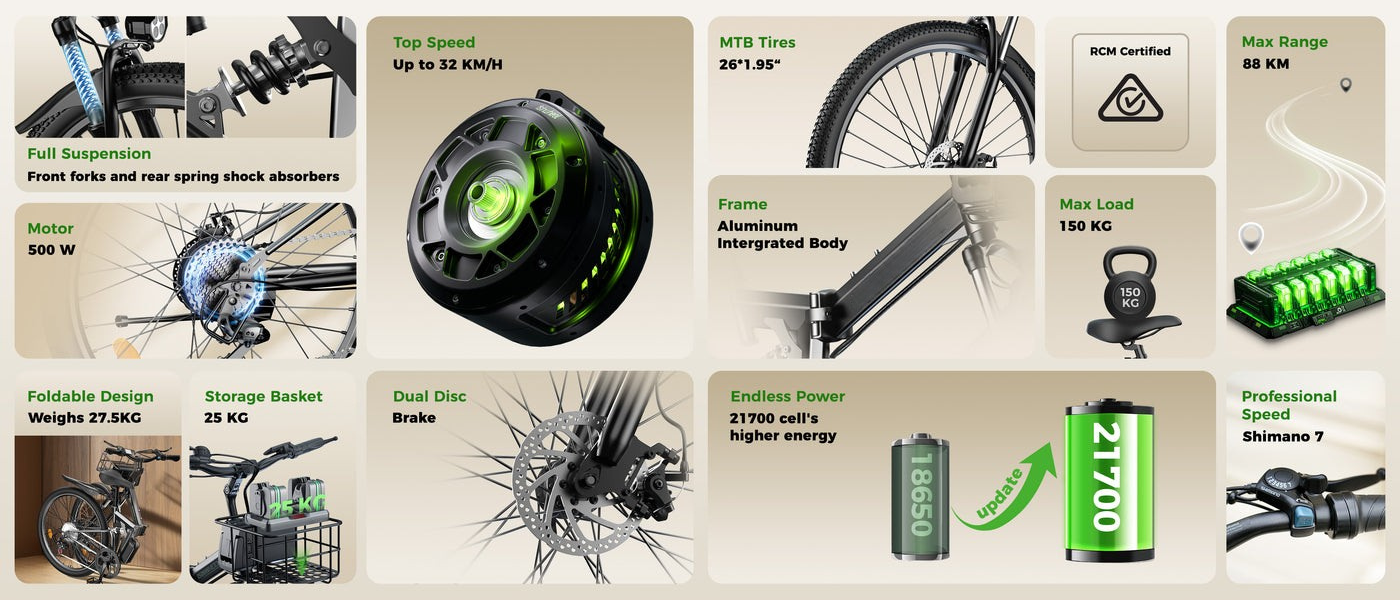

Feature Specifications
Adult e-bikes are portable, fun for commute & recreation.
|

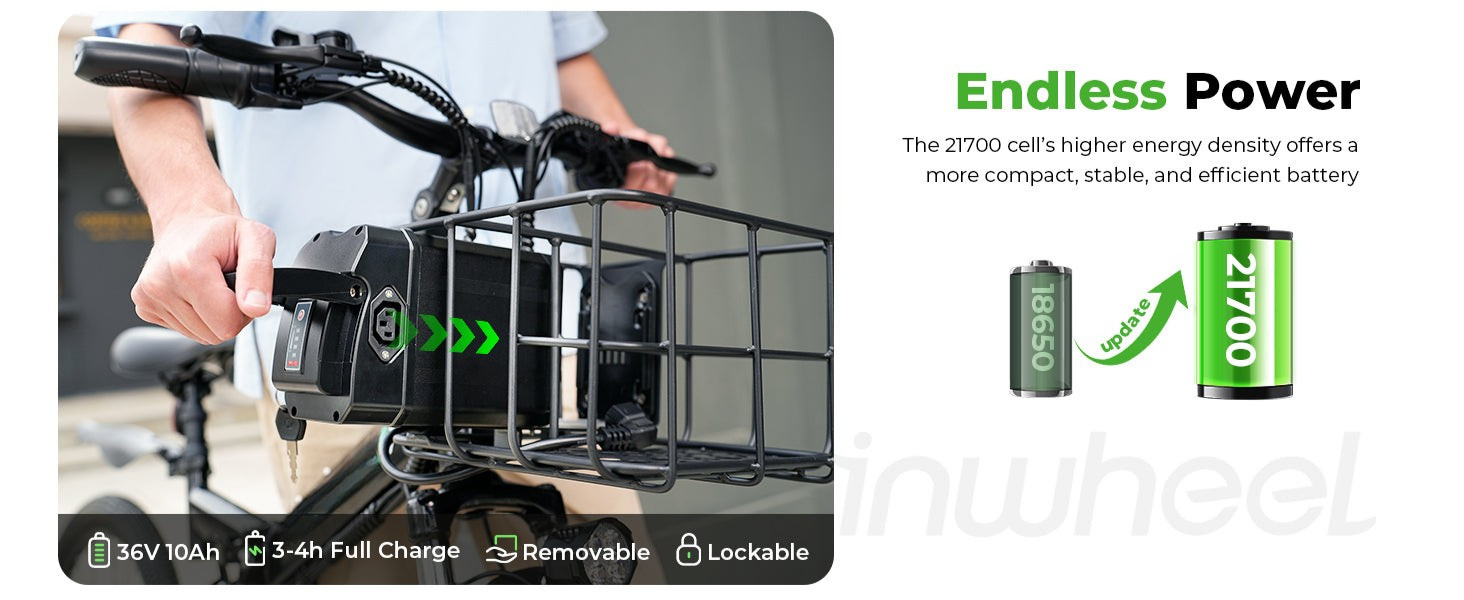

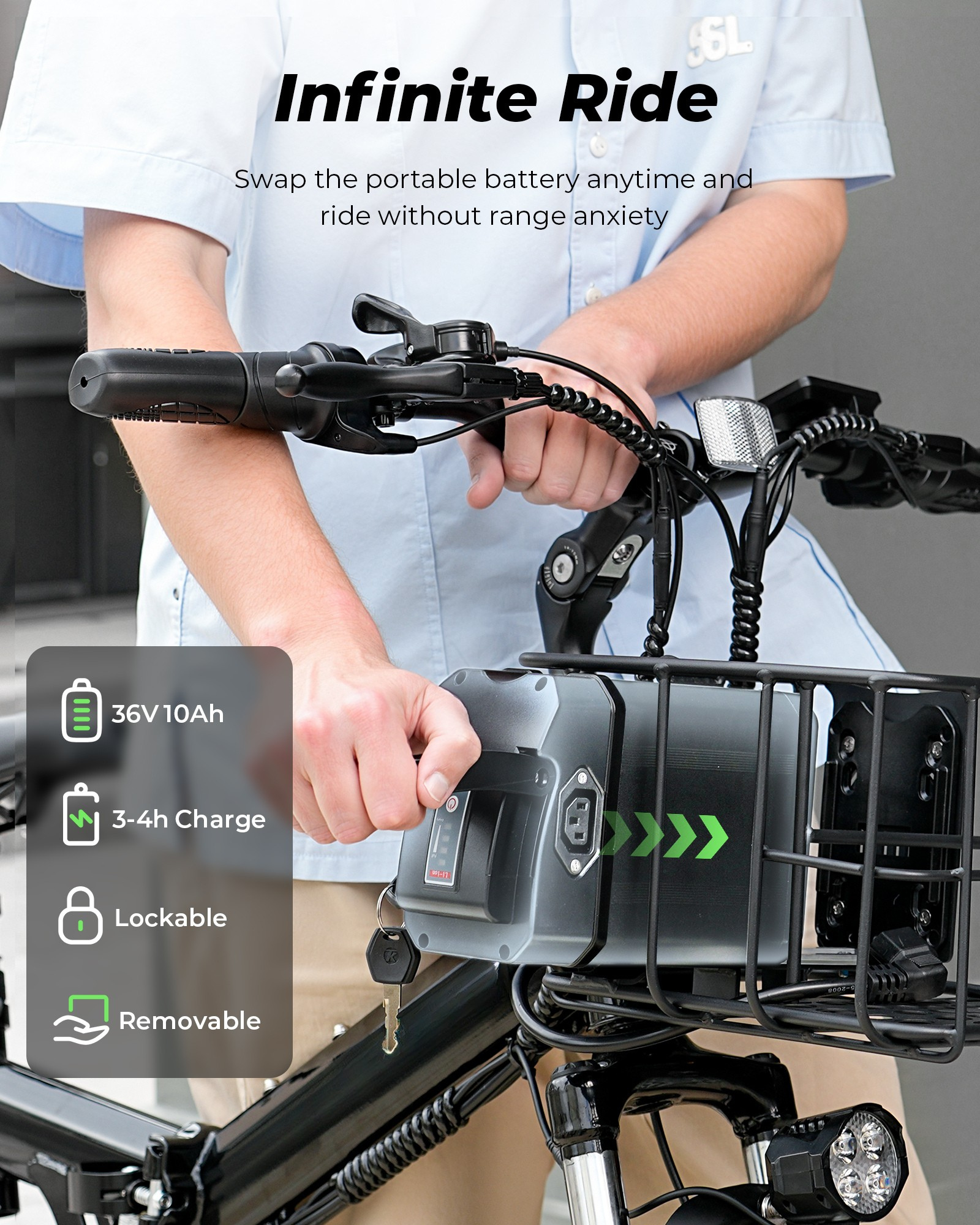

Battery
360 Wh (UL-certified) |
Range
88 + KM per charge |
|
Max Speed
32 KM/H |
Motor
500W Power |
|
Wheel Size
26*1.95 inches |
Water Resistance
IPX4 |
|
Charge Voltage
100-240V / 3A |
Charge Time
3-4 hours |
|
Operating Temperature
–4°F – 140°F |
Net Weight
60 lbs |
|
Product Dimensions
66.5 × 26.8 × 45.3 in / 169 × 68 × 115 cm |
Max Load
330 lbs / 150 kg |
1 x M40 E-bike (Partially Assembled)
1 x Front Wheel
1 x Quick-Release Skewer
1 x Saddle

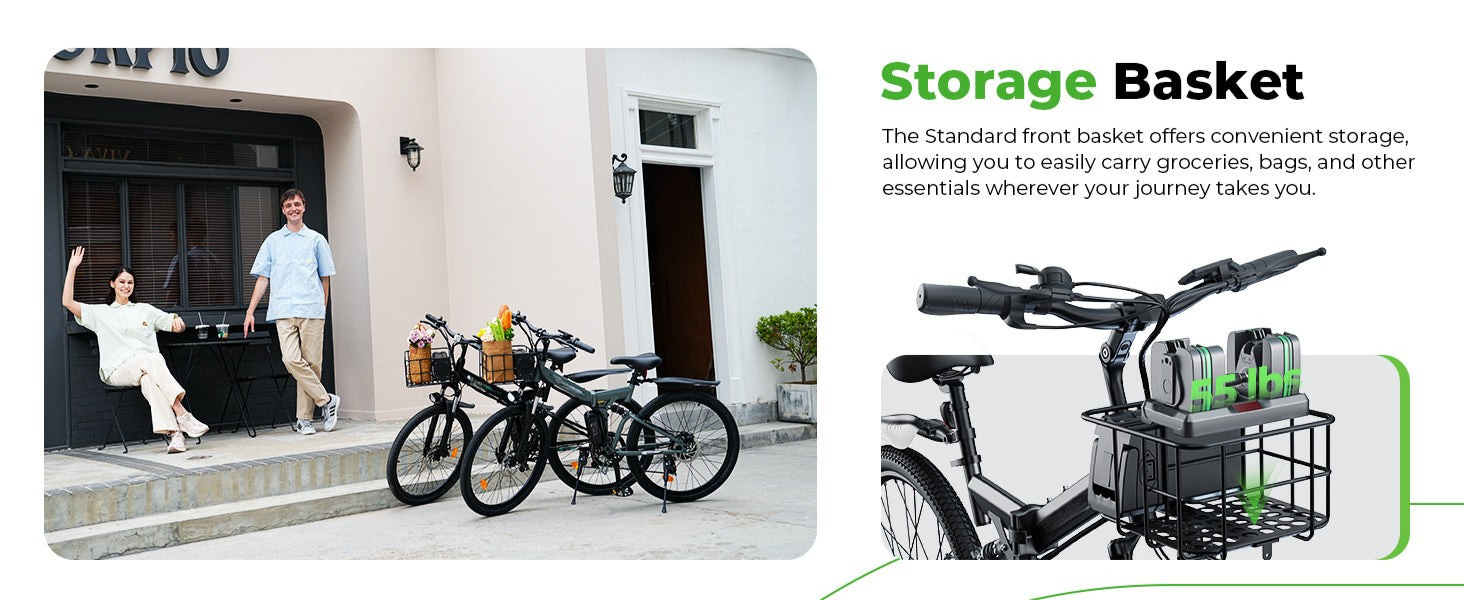

1 x Front Basket (with Battery)
1 x Stem
1 x Taillight (Built-in Button Cell)
1 x Front Reflector
1 x Front Fender
1 x Rear Fender
1 x Rear Axle Nut Cover
1 x Left Pedal
1 x Right Pedal
1 x Charger
1 x Bicycle Pump
2 x Battery Keys
1 x User Manual
1 x Safety Instructions
1 x Toolkit
(Note: If the scooter you purchased is equipped with pneumatic tires, please inflate them before riding.)
💝 Return & Refund Guarantee- 30 Days Money Back & 12 Months Warranty.
📞Customer Support- Please email to support@iscooterglobal.com. Our experts will reply within 24 hours.
At iScooter Electric we are passionate about providing dedicated customer support, so you get total peace of mind with every electric scooter.
Q1.How long does it take to deliver?
You will be notified of your tracking number once shipped.
Order cut off time will be 9am-7pm(GMT).
Processing Time: We aim to have all products processed by our warehouses in 2 business days. Please note there are delays during holiday and other sales seasons.
Once dispatched, we estimate the delivery times of:
| State | Delivery Time(Business Days) |
| New South Wales | 3-6 |
| ACT | 4-7 |
| Victoria | 4-7 |
| Western Australia | 6-8 |
| Queensland | 6-10 |
| South Australia | 8-10 |
| Tasmania | 8-10 |
Please note that remote areas can take longer for delivery.
We are unable to ship to certain locations and we also cannot ship to PO Boxes & Parcel Lockers.
Q2:The front light and screen will be automatically shut off?
A:To save and protect the battery, when the scooter is stationary for 5-10 minutes, it will automatically enter power-save modes and turn off.
Q3:Unable to accelerate?
A:1. For your safety, by default, we designed for this, "Non-zero startup", it only needs one initial speed to start. Or you can connect "Minibot" APP, then, if you turn on Zero Start. 2. Error code (visible on LCD), please contact us to replace a throttle.
Q4:Motor hall Faults?
A:Take off the screws on the bottom of the scooter, then check the controller and replug the hall wire connecting terminal.
Q5:Controller Faults?
A:Take off the screws on the bottom of the scooter, then check and replug the controller connecting terminal.
Q6:Unable to power on?
A:1. Unplug your charger from the port, then click the power button to turn on your scooter. 2. Use the multimeter to measure the voltage of the battery, if the voltage is from 30-42V, it means there is no problem with the battery. If the voltage is lower than 30V, the scooter maybe not be turned on.
Q7:Not charging?
A:1. Check your charging cable and charging port for signs of damage, like breakage. Don't use damaged accessories. 2. Use the 220V ACA of the multimeter to measure the voltage of the charger and charger port, if there isn't reading, your scooter probably needs to replace the charger or charger port. if there is a reading, it probably needs to replace the battery.
Q8:Scooter seems to make noise?
A:It may be the disc brake noise. To remove the disc brake noise:First make sure the scooter is turned off. 1. Loosen two screws on the pump (not the screw on the rocker). 2. Adjust the position of the disc brake pump to ensure that the brake disc is in the middle of the two brake pads. 3. Keep the brake disc and brake pad not touching each other. 4. Hold the disk brake pump in the desired position, then retighten the screws to the pump. Or contact customer service to get an operation video.
Q9:The speed and range are not as same as described?
A:The speed and range will be effected by temperature of environment, the condition of road, the weight of rider(including all belongings )
